Test & Measurement

Test & Measurement Market

The ability to design custom Test & Measurement equipment requires expertise in many areas.
A2e Technologies' expertise in the following allows it to design almost any piece of test & measurement equipment.

Hardware

  • High-speed digital
  • Gigahertz analog to digital (ADC)
  • Picosecond time interval measurement circuits
  • Low jitter circuit design
  • Pulse generators
  • Amplifier circuits
  • Sensitive analog circuitry
  • Optical measurements
  • RF
  • High-speed busses & I/O
  • Phase locked loops
  • Phase accumulators
  • Electromagnetics
  • Pico ampere measurements
  • Switch and linear power
  • Low-cost design for low volumes

Software

  • Embedded software
  • Embedded GUI development
  • Test automation
  • System characterization
  • Calibration software
  • DSP

Other

  • UL, CSA, CISPR, FCC
  • Design for manufacture
  • High Volume / Low Cost

Experience

  • Digital Storage Oscilloscopes
  • Arbitrary Waveform Generators
  • Function Generators
  • Pulse-Pattern Generators
  • Frequency Synthesizers
  • Signal Generators
  • Calibrators
  • Signal Switches
  • LAN/Coaxial Cable Test & Cert.
  • Counter / Timers
  • Data Acquisition
  • Digital Multi Meters (DMM)
  • Custom Sensors

Sample Projects

Electronic Design Services

2 Channel 1 GHz Digital Scope

2 Channel 1 GHz Digital Scope

  • - 20 layer two sided PCB
  • - Altera Stratix II FPGA
  • - 1 GHz ADC
  • - Sensitive Analog Circuitry
  • - Complex embedded control SW
Electronics Design Services

8 Channel Arbitrary Waveform Generator, Digitizer, Counter Timer

8 Channel Arbitrary Waveform Generator, Digitizer, Counter Timer

  • - 18 layer two sided PCB
  • - Altera Stratix II FPGA
  • - Sensitive Analog Circuitry
Electronic Design Service

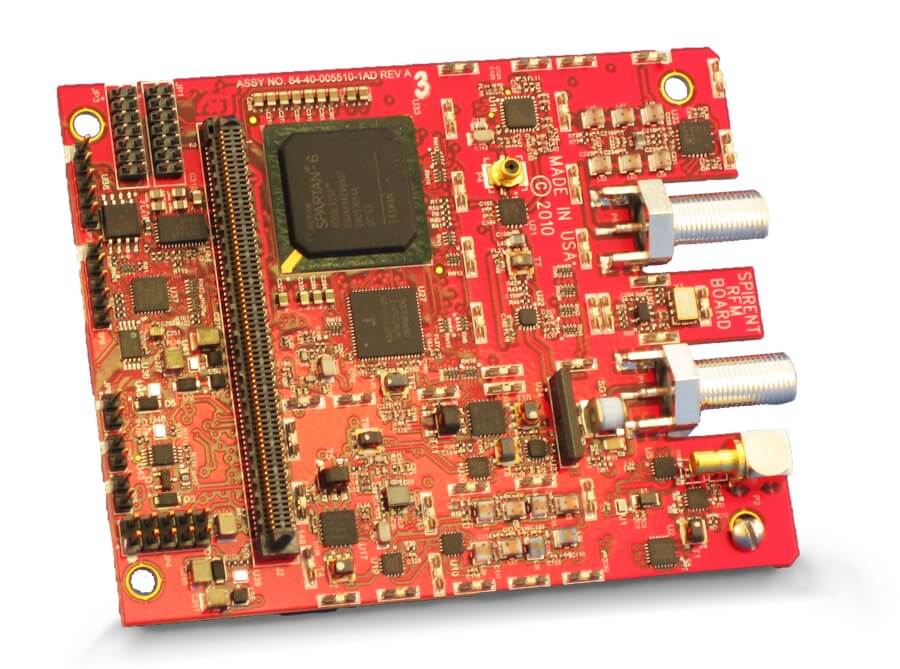

Handheld Spectrum Analyzer

Handheld Spectrum Analyzer

  • - Upstream, Downstream and MoCA
  • - Discrete Fourier Transform Based
  • - Programmable Windowing
  • - Built-in Preselects for CATV
  • - Fine Set Attenuator
  • - Gain Control with built in LNA
  • - and more...
Electronics Design Service

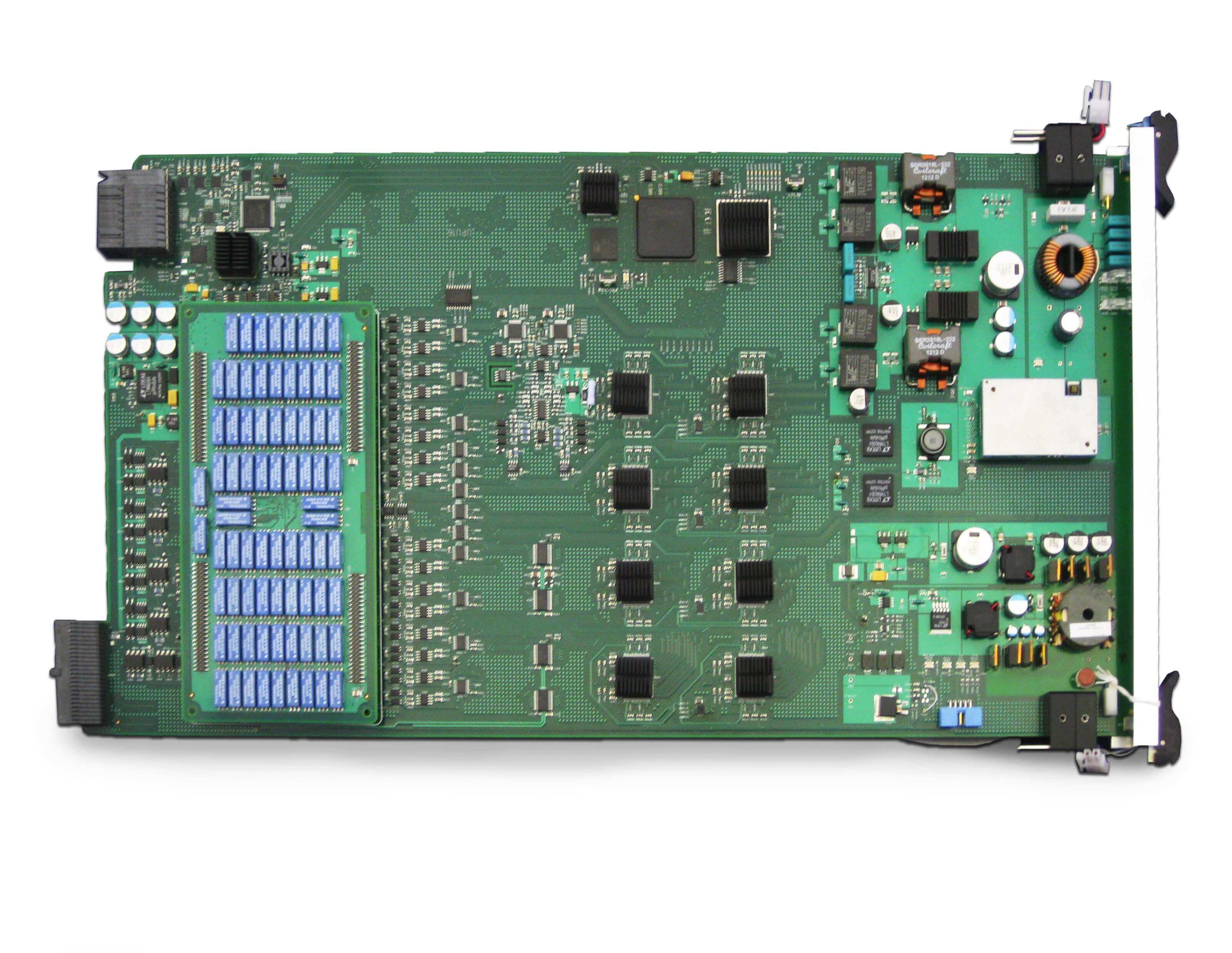

64 Channel Mixed Signal IC Tester

64 Channel Mixed Signal IC Tester

  • - 64 Channels
  • - Mixed signal pin driver ICs
  • - Xilinx Spartan FPGA for PCIe, pattern generation, etc.
  • - Power Supplies
  • - Relay matrix
  • - C++ running on PC to control

We create reliable, manufacturable designs that will meet or exceed your expectations!

Why Our Designs Are Better

Reduced Cost

Products are designed to reduce cost of the BOM and manufacturing and test. We do everything we can to provide you a competitive design.

Optimized Designs

We optimize our designs and do not include anything that is not required. We focus on providing exactly what you need.

Reliability

We worst case time test all our designs to assure that you have reliable products off the manufacturing line and for years to come.

Long Production Life

We never design in obsolescence. We make sure only components that at least match the expected life of your product are designed in.

Complete Documentation

We provide complete documentation for all work we do including: Functional Specs., Design Specs, Code and Design File Comments, BOM, User Manual, .....

Support

We are always here to help you transition to manufacturing. In addition we are here to help your teams take over the product design and to help with product design enhancements.
