Digital & IP Video Design

A2e Technologies has designed many IP and Digital Video solutions. We have deep expertise in video and have developed our own video compression cores (H.264 and JPEG) that we license. We can help you design ANY digital video based system including all hardware, firmware/software and FPGAs.

Video & Audio CODECs

Hardware video compression

  • MPEG
  • H.264
  • JPEG (8-bit, 12-bit)
  • MJPEG

CMOS & CCD Sensors

  • HDR Sensors
  • SDR Sensors
  • Multi-camera systems

Image Processing

  • Image stiching
  • Noise reduction
  • Image Signal Processing
    • HDR tone mapping
    • Bad pixel correction
    • Bayer-to-RGB
    • Exposure control
    • Gamma correction
    • White balance
    • Sharpening
    • Color correction
  • On Screen Display (OSD)
  • Scaling
  • Dewarping
  • Color space conversion, chroma resampling
  • De-interlacing
  • Morphological operations (erosion, dilation)
  • Binarization
  • Blob/object detection
  • Object tracking
  • 1D/2D barcode decoding
  • Stream sanitizers

IP Cameras

Video Interface

  • HDMI
  • DVI
  • HDSDI
  • GMSL
  • MIPI CSI, DSI
  • CoaxPress

Software Components

  • Low level sensor configuration
  • Vidoe for Linux (V4L) Drivers
  • PCIe driver customizations (XDMA, third party)
  • OpenGL/DirectX integration
  • CUDA integration
  • OpenCV

Sample Projects

Video Electronic Design Services

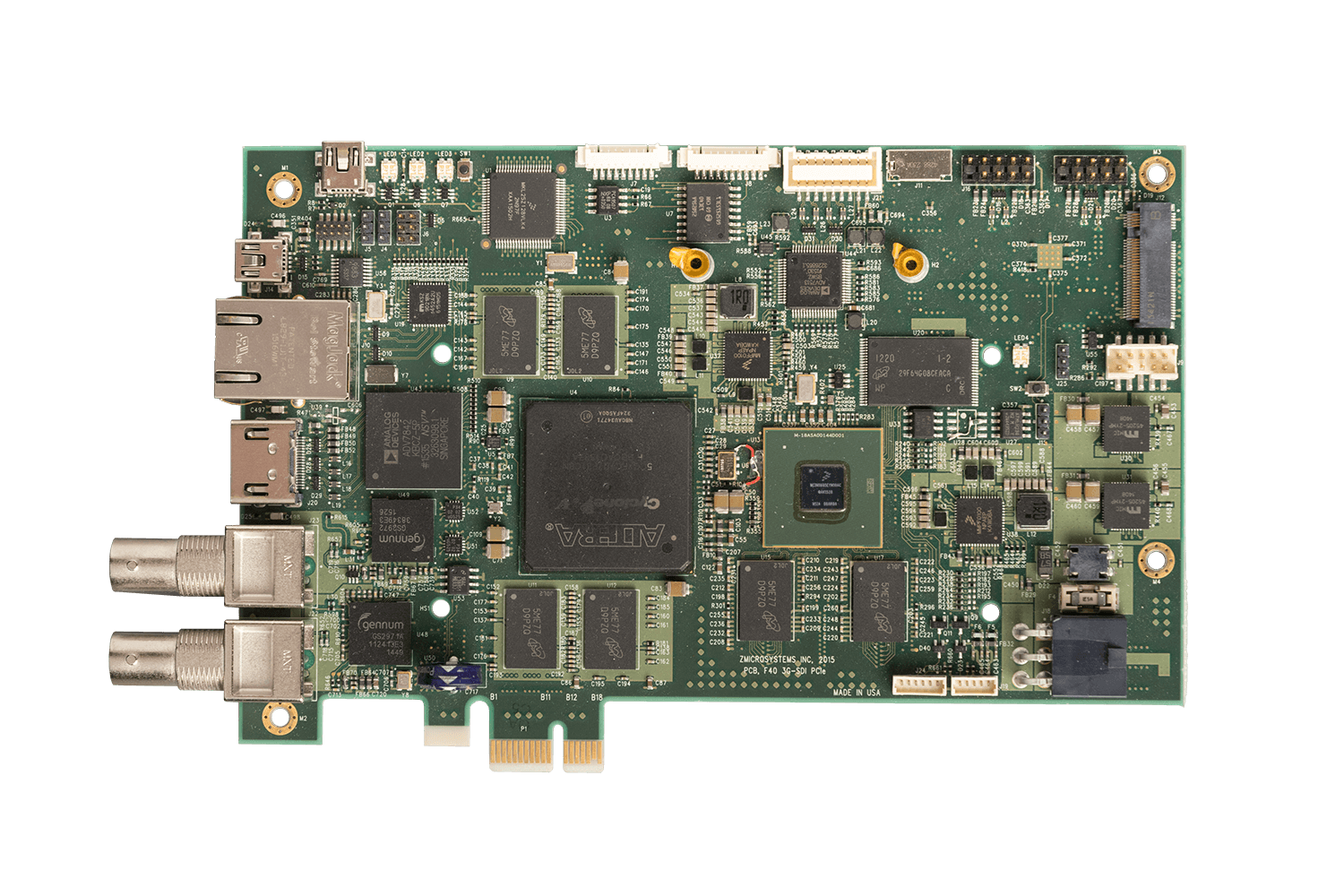

Video Processor

Video Processor

  • - 3G-SDI In and Out
  • - HDMI In and Out
  • - Cyclone V SoC GX FPGA
  • - i.MX6 Application Processor
  • - Kinetis Micro Supervisor
  • +12V PCIe Input Power
SDR-RF ID Electronics Design

SDR-RF ID Tag Reader: Digital Board

SDR-RF ID Tag Reader

  • - Xilinx Zynq UltraScale+ FPGA
  • - 4GB DDR4 - expandable to 16GB
  • - NVM - QSPI Flash 512Mbit
  • - IEEE 802.3bt PoE++ - up to 40W
  • - 4 channle RFID provided by RF boared
  • - 4 MIPI DPHY 4-lane cameras
  • - Gigabit Ethernet
  • - PCIe Mini Card
  • - USB3.0
  • - USB UART
  • - and more...
Electronics Design Services

Wireless Dual Video Camera

Wireless Dual Video Camera

  • - Dual Image Sensors
  • - TI Microprocessor
  • - USB and 801.11b for image upload
  • - Ruggedized Design
  • - G-Force sensors for impact detection
Electronic Design Service

180 Degree Digital Video Camera

180 Degree Digital Video Camera

  • - 180 Deg. field of view
  • - 5 sensors
  • - 7 Megapixels
  • - No fisheye distortion
  • - 15 fps
  • - H.264 or MJPEG
  • - and more...
Zynq Electronic Design Services

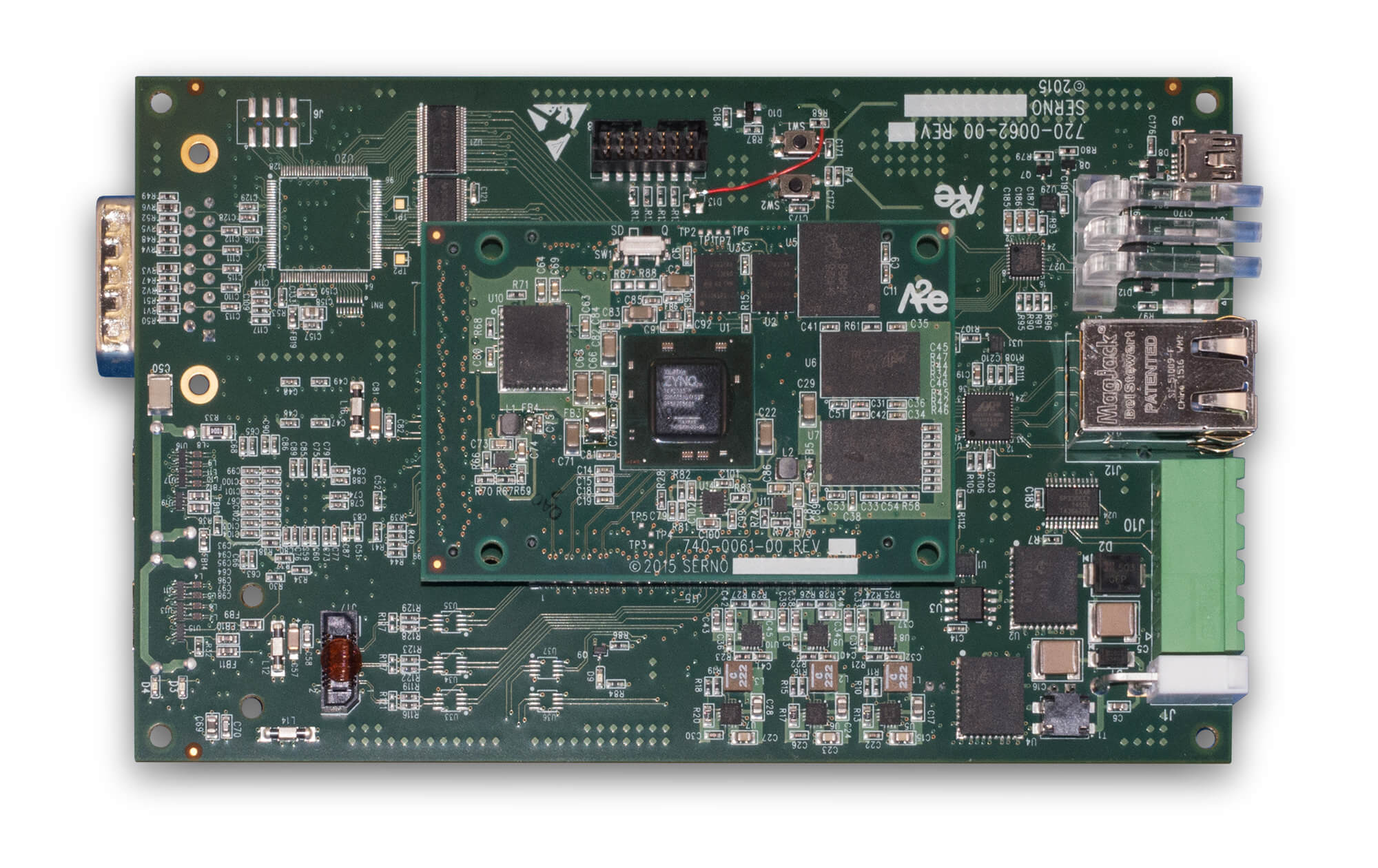

Zynq 7030 SOM Camera Module

Zynq 7030 SOM Camera Module

  • - 1GB DDR3L, 4GB eMMC Flash
  • - 128 MB QSPI Flash
  • - Power by 5V rail
  • - Small 3x2 inches
  • - Carrier board support for connectors
Xilinx FPGA Electronic Design Services

Zynq 7045 PCIe Frame Grabber

Zynq 7045 PCIe Frame Grabber

  • - 2 x DDR 3 SODIMM
  • - 20GBit Aurora interface to camera
  • - Gigabit Ethernet
  • - PMOD interface for 3rd party modules
  • - 3/4 Inch length, full height PCIe
PCI Electronics Design Services

CoaXPress PCIe Frame Grabber

CoaXPress PCIe Frame Grabber

  • - Power over CoaXPress
  • - Two Xilinx 7 FPGAs
  • - Linux device drivers for PC
Video Display Electronic Design Services

Video Display Controller

Video Display Controller

  • - Designed for hand, battery operation
  • - Altera Cyclone ctl video processing
  • - Altera VIdeo Image PRocessing (VIP)
  • - Alpha blending, rotation, scaling
  • - 3 channel input digital video
  • - Linux drivers
ATSC 8-VSB Electronics Design Services

4 Channel ATSC 8-VSB Tuner

4 Channel ATSC 8-VSB Tuner

  • - Multiple i2C busses
  • - Temp & voltage sensing
  • - PID filtering
  • - Error checking
  • - API for control of tuner/demod and more...
Video Elecronic Design Service

PCIe Video Streaming Card

PCIe Video Streaming Card

  • - HDMI
  • - Encrypted SATA
  • - H.264 decompression
  • - 3D support
  • - HD Audio
  • - Lynux drivers

We create reliable, manufacturable designs that will meet or exceed your expectations!

Why Our Designs Are Better

Reduced Cost

Products are designed to reduce cost of the BOM and manufacturing and test. We do everything we can to provide you a competitive design.

Optimized Designs

We optimize our designs and do not include anything that is not required. We focus on providing exactly what you need.

Reliability

We worst case time test all our designs to assure that you have reliable products off the manufacturing line and for years to come.

Long Production Life

We never design in obsolescence. We make sure only components that at least match the expected life of your product are designed in.

Complete Documentation

We provide complete documentation for all work we do including: Functional Specs., Design Specs, Code and Design File Comments, BOM, User Manual, .....

Support

We are always here to help you transition to manufacturing. In addition we are here to help your teams take over the product design and to help with product design enhancements.

The fastest way to get started is to contact us today.

We can estimate your project in just a few days!
